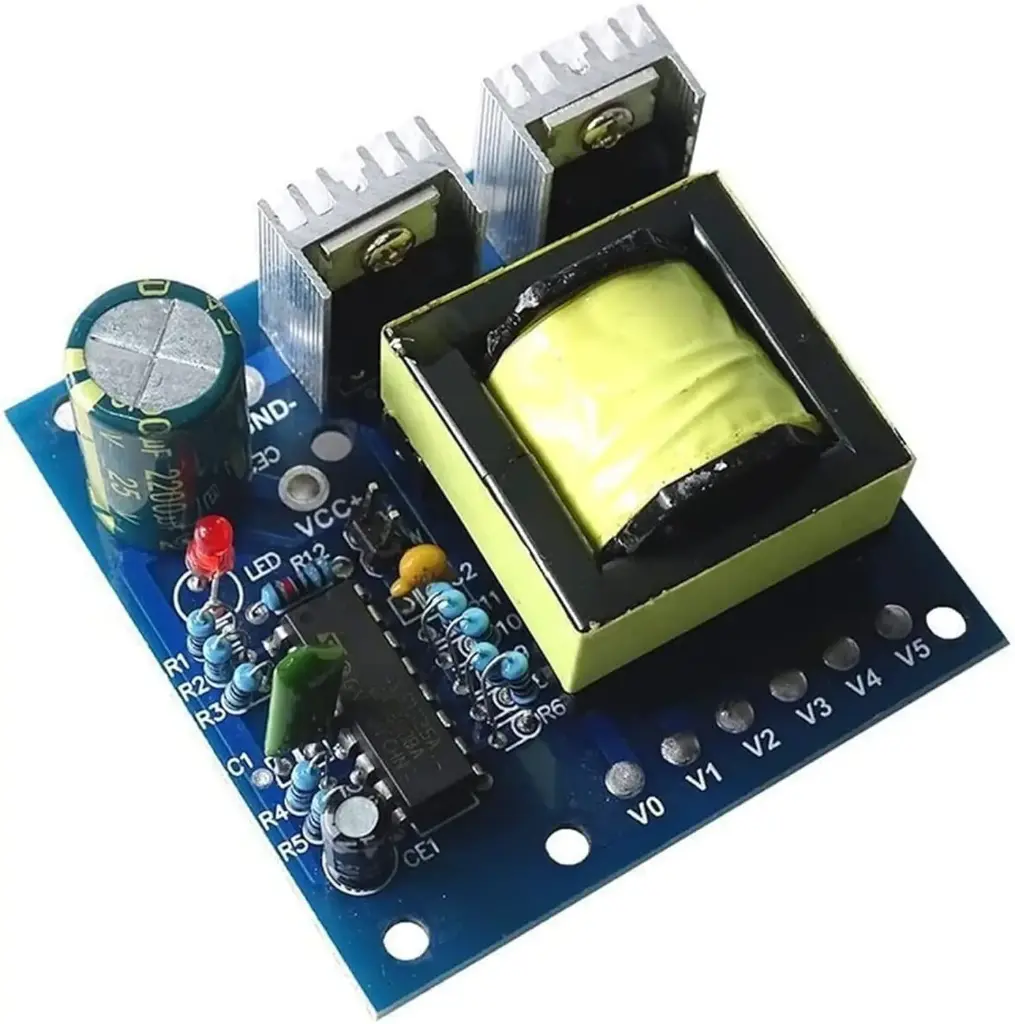

DC-AC Boost Converter Module 12V-220V, 150W

Product Description

Description: High-quality product. Material: Electrical components Color: See photos.

Specifications:

• Power: 150W

• Input voltage: 12V DC

• Output voltage: AC 0–110V–172V–200V–220V

• Standby current: approx. 0.05A

• Output waveform: High-frequency square wave

• Output frequency: approx. 20 kHz

• Protection: None

Notes:

1. This board provides a high-frequency square AC output; it is not suitable for inductive devices such as motors, fans, or coil transformers.

2. When used with low-load devices (LED lights, mobile phone chargers, DVD decoder boxes), it is recommended to start with a lower voltage point such as 172V/110V.

3. A large heat sink must be installed for long-term operation under high load (>100W).

4. Do not connect the power supply in reverse. In addition, the power source and cables must be sufficiently rated.

5. Do not overload or short-circuit, as the module has no protection measures.

6. The voltage meter reading of the no-load output frequency may appear slightly higher.

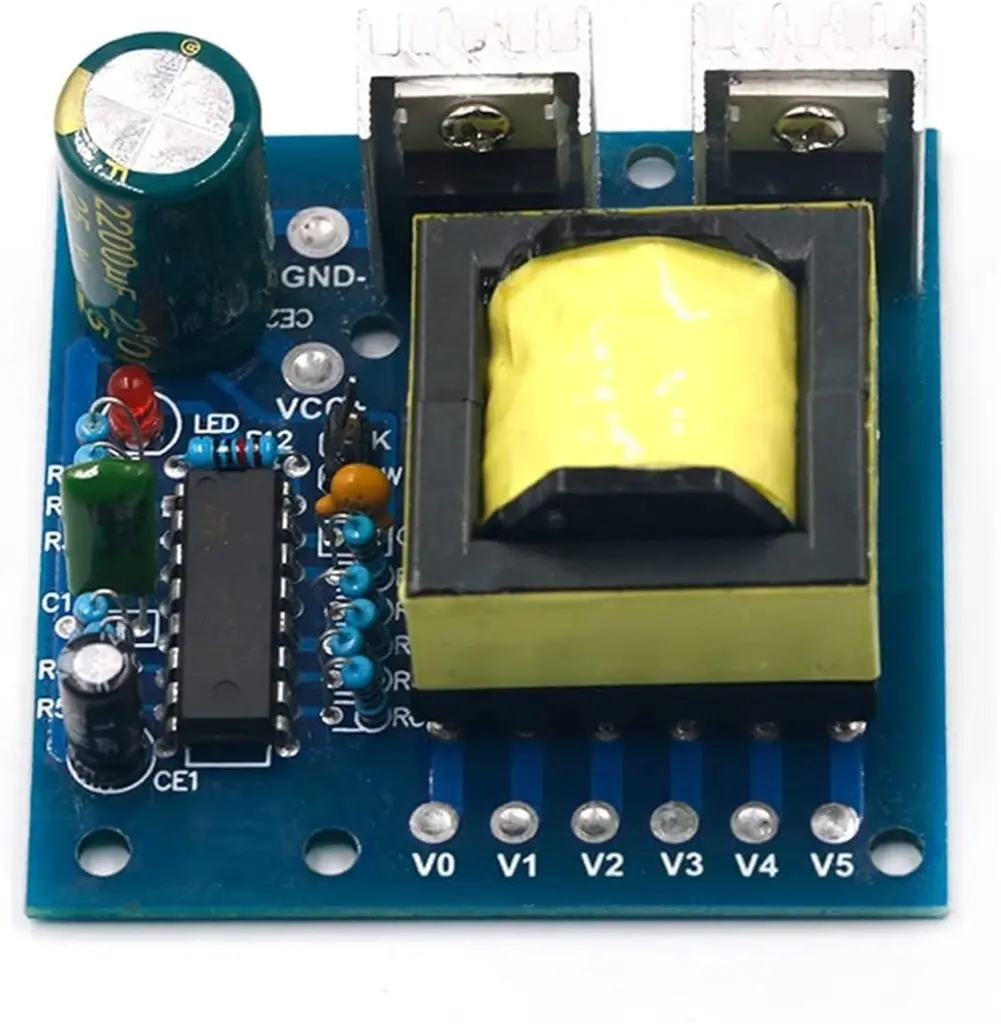

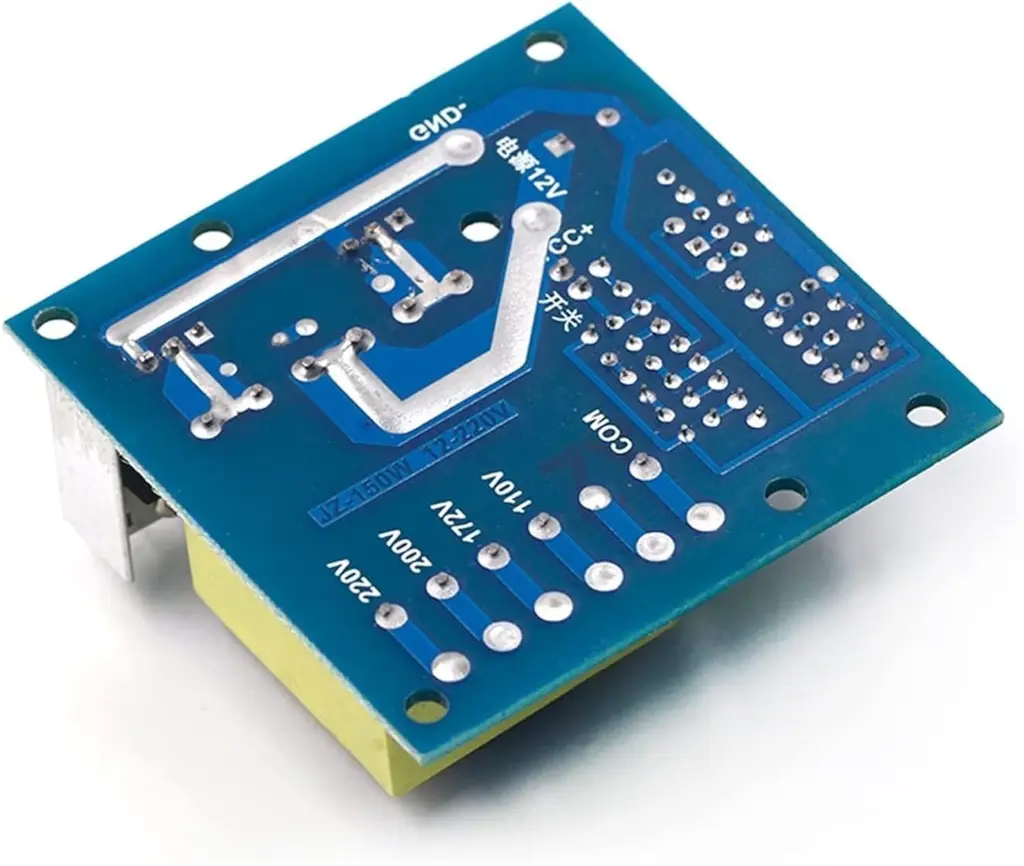

Output wiring voltages:

• V0–V2 = 110V

• V0–V3 = 175V

• V0–V4 = 200V

• V0–V5 = 220V

• V5–V4 = 20V

• V5–V3 = 45V

• V5–V2 = 110V

• V4–V3 = 28V

• V4–V2 = 90V

• V3–V2 = 62V
