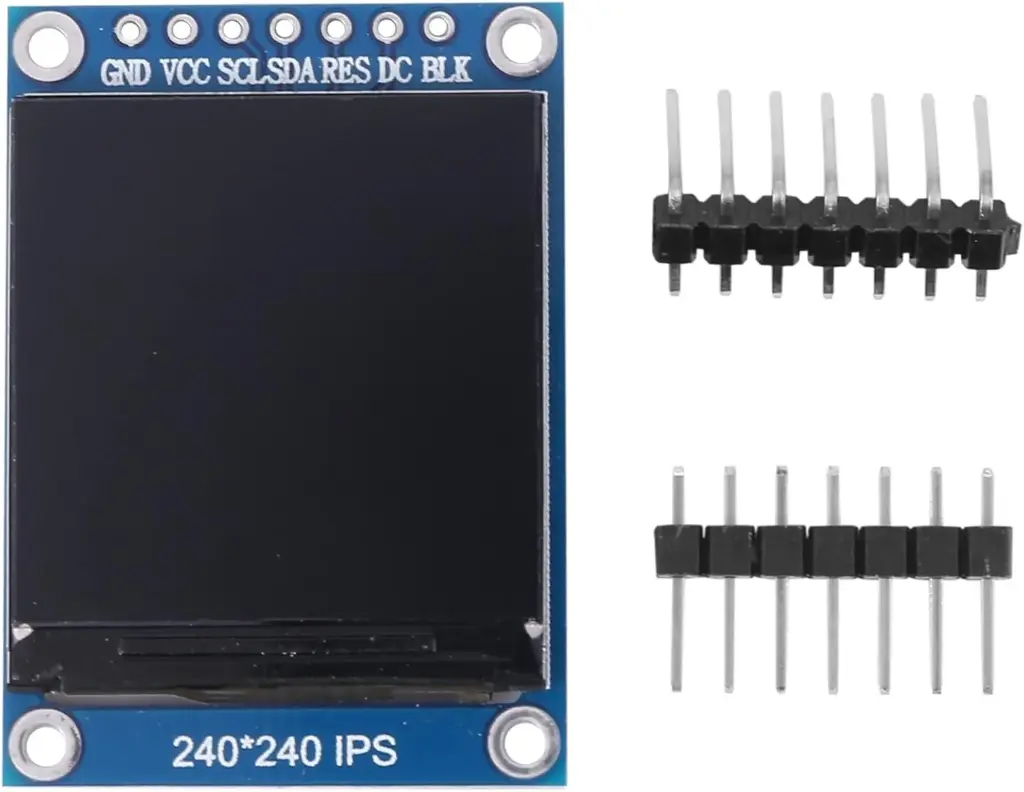

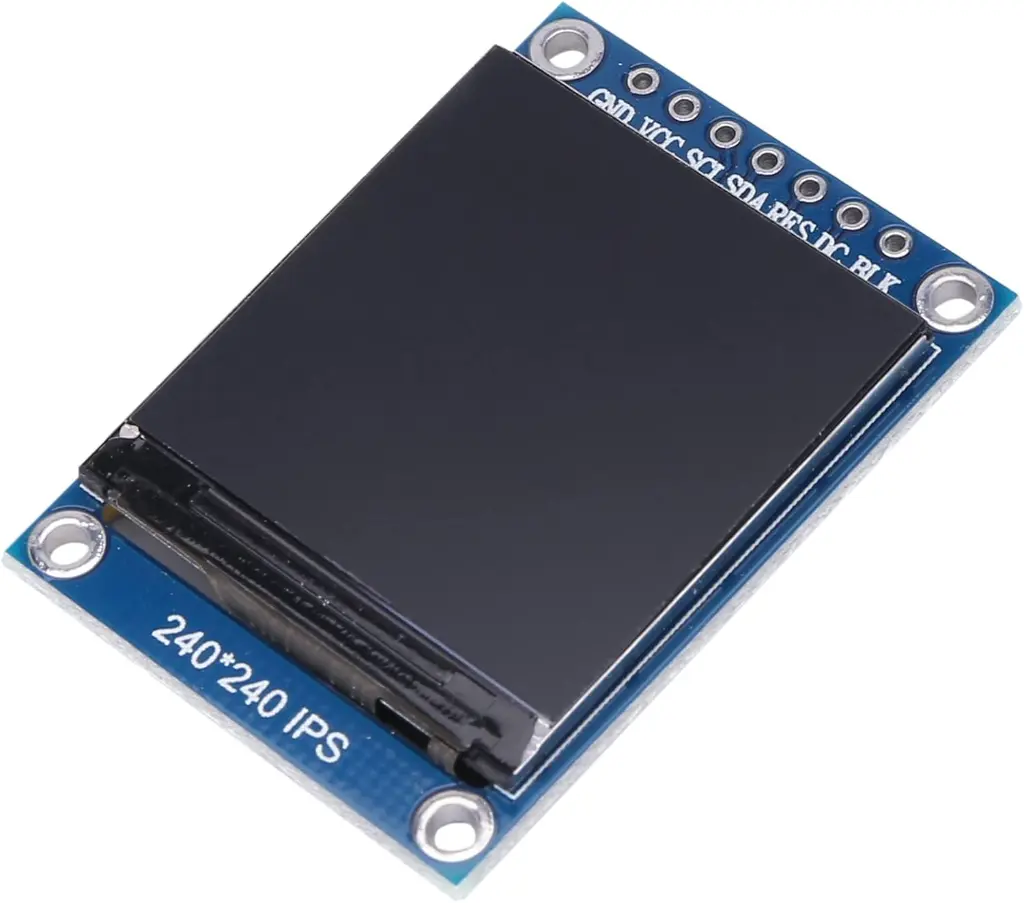

1,3" Ic 240 x 240 Spi Communication 3,3 V Tension Spi Interface Full Color Tft Écran LCD

Product Description

• Operating voltage: 3.3 V

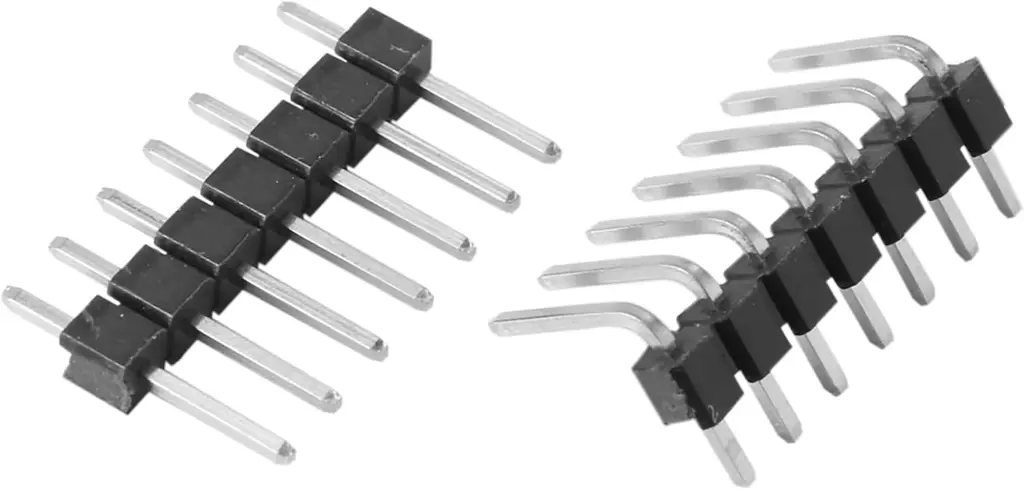

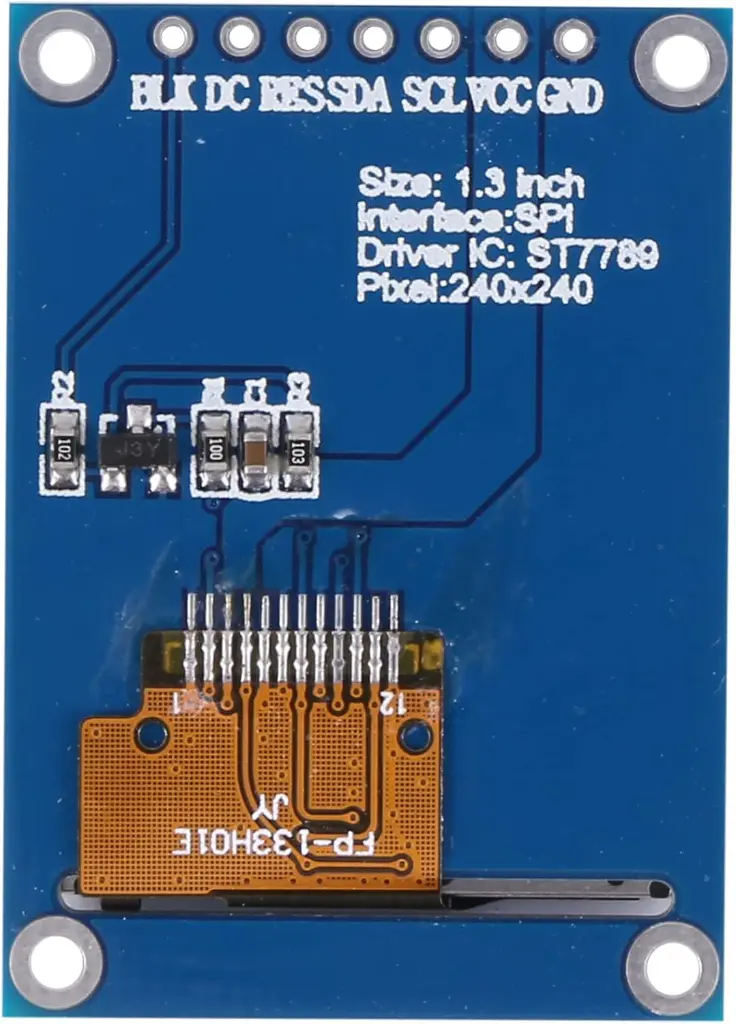

 • Number of pins: 7 pins

 • Viewing direction: IPS wide‑view angle

 • GND: Ground

• VCC: 3.3–5.0 V (DC) • SCL: SPI clock line

• SDA: SPI data line

 • RES: Reset interface

 • DC: SPI data/command selection

 • Backlight control: Floating by default; low level turns it off

 • Color: Blue

• Materials: Metal and polycarbonate

• Module size: 27.78 × 39.22 mm

 • LCD screen size: 1.3"

 Note: The item’s color may vary slightly from the photos due to display and brightness settings. A measurement tolerance of ±1–3 cm is allowed.
