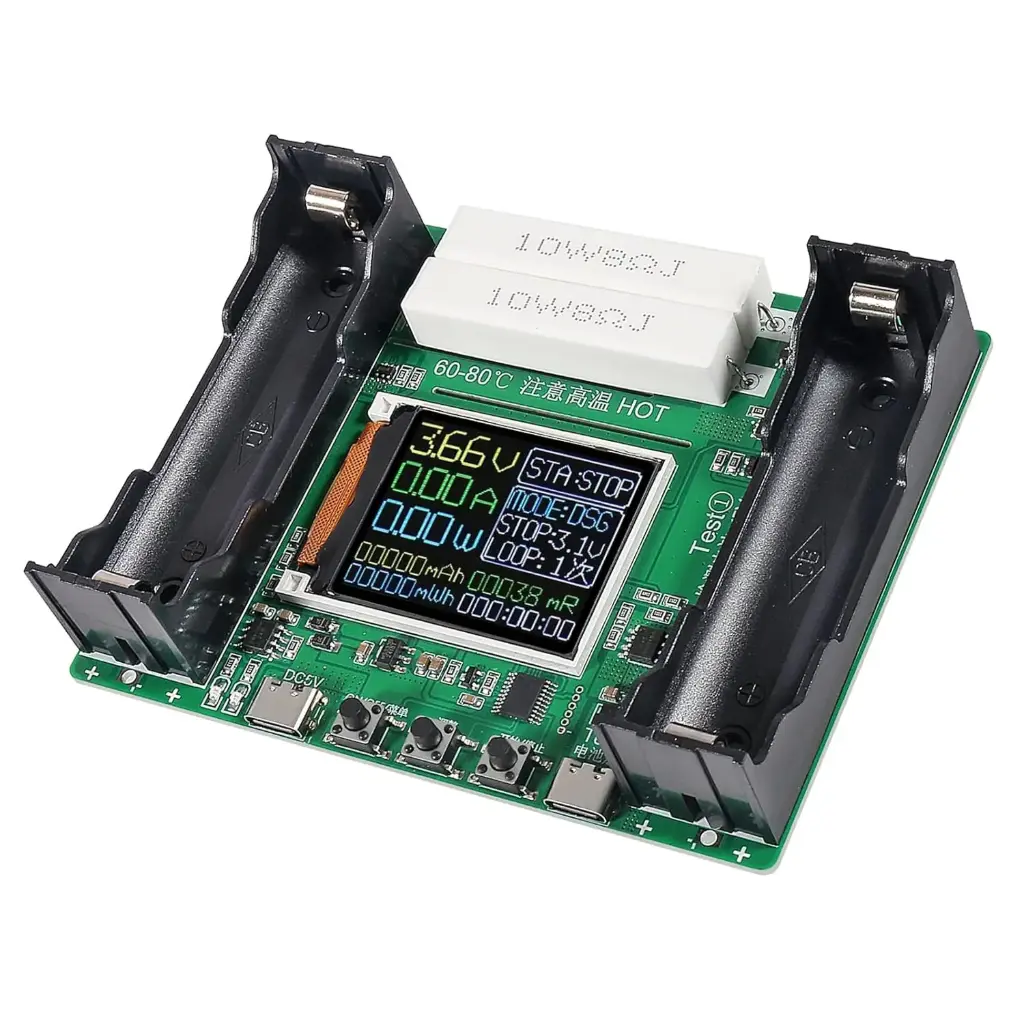

18650 Lithium Battery Capacity Tester Module, Digital Display in mAh/MWh, Power Detector, Type-C Interface
- Supply Voltage: DC5-12V lithium battery (not include)；Measurement Accuracy: 1mAH；Standby Current: 5mA；Discharge Current: About 500mA；Load Power: 10W 8Ω

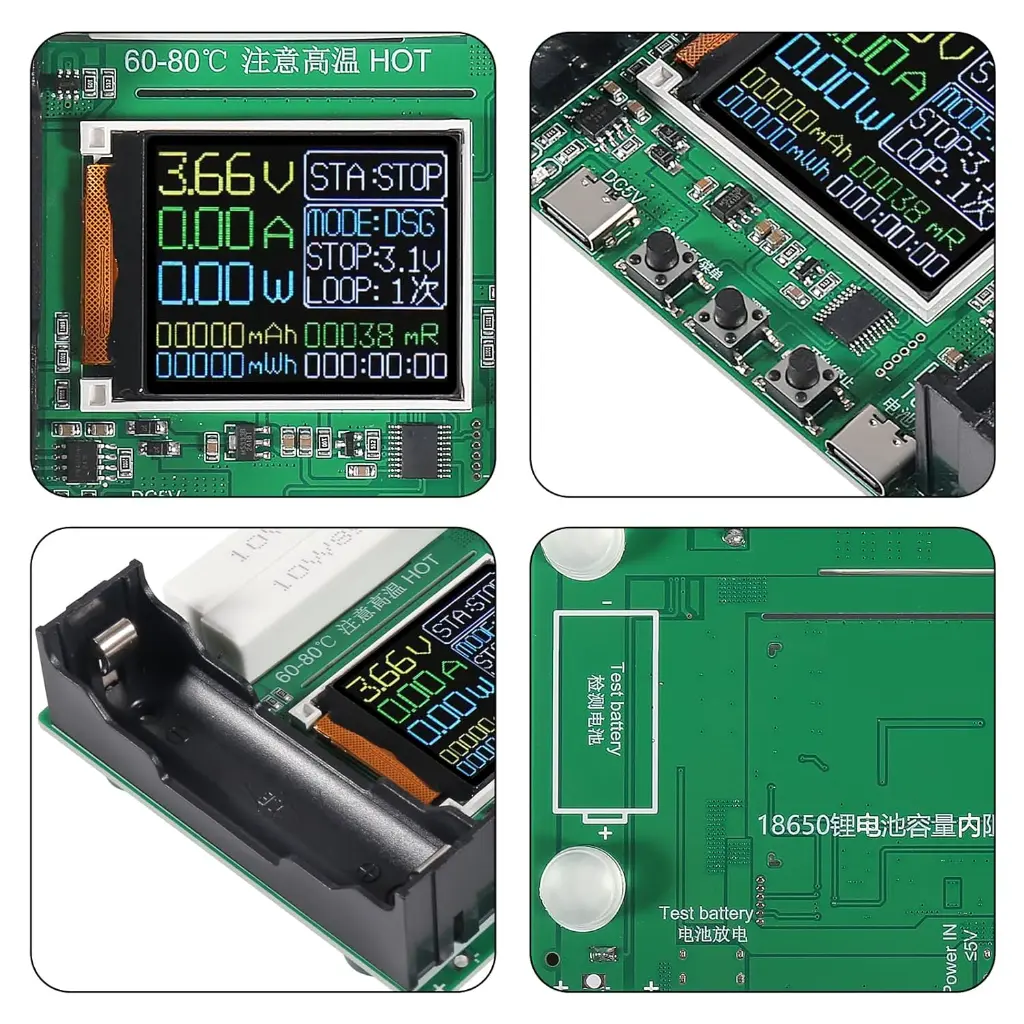

- LCD Display: The 1.77in screen displays internal resistance, capacity, voltage, current, power and other information at the same time.

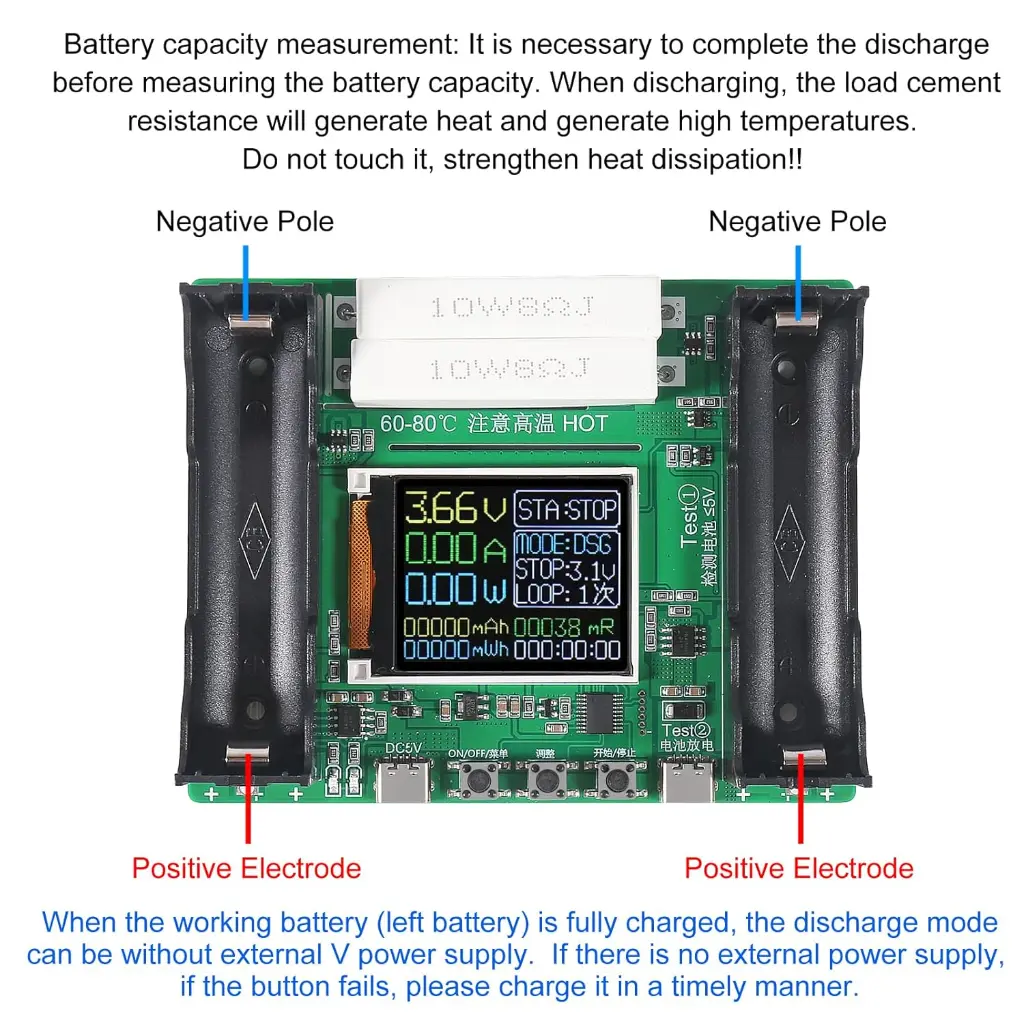

- This battery capacity tester is mainly used for test the capacity of 18650 battery.
- This battery tester operates on a DC 5V power supply and is equipped with dual Type-C ports (power cord not included, compatible with C-type cables). It utilizes a direct current two-wire method for internal resistance measurement and provides status indicators. It also offers high-temperature protection and active heat dissipation.
- Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, a total of 11 adjustable gear.
