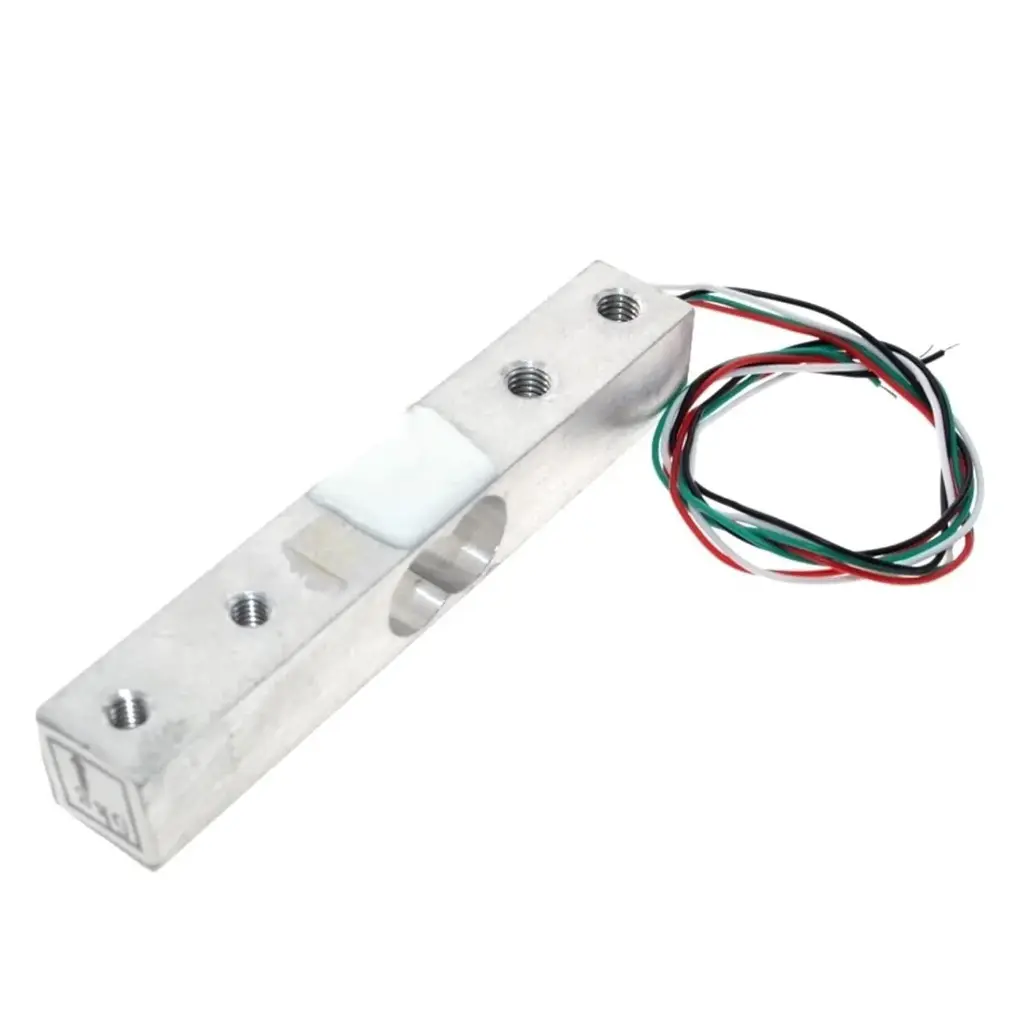

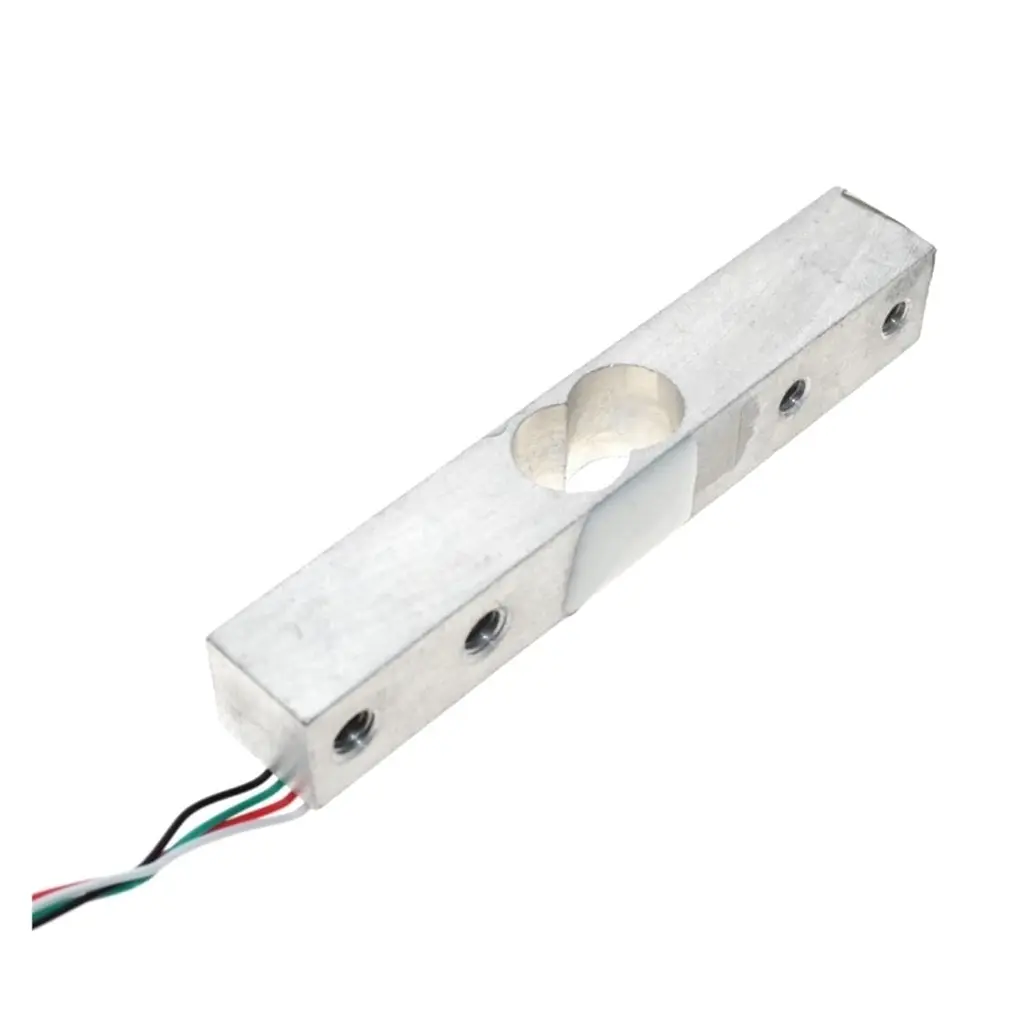

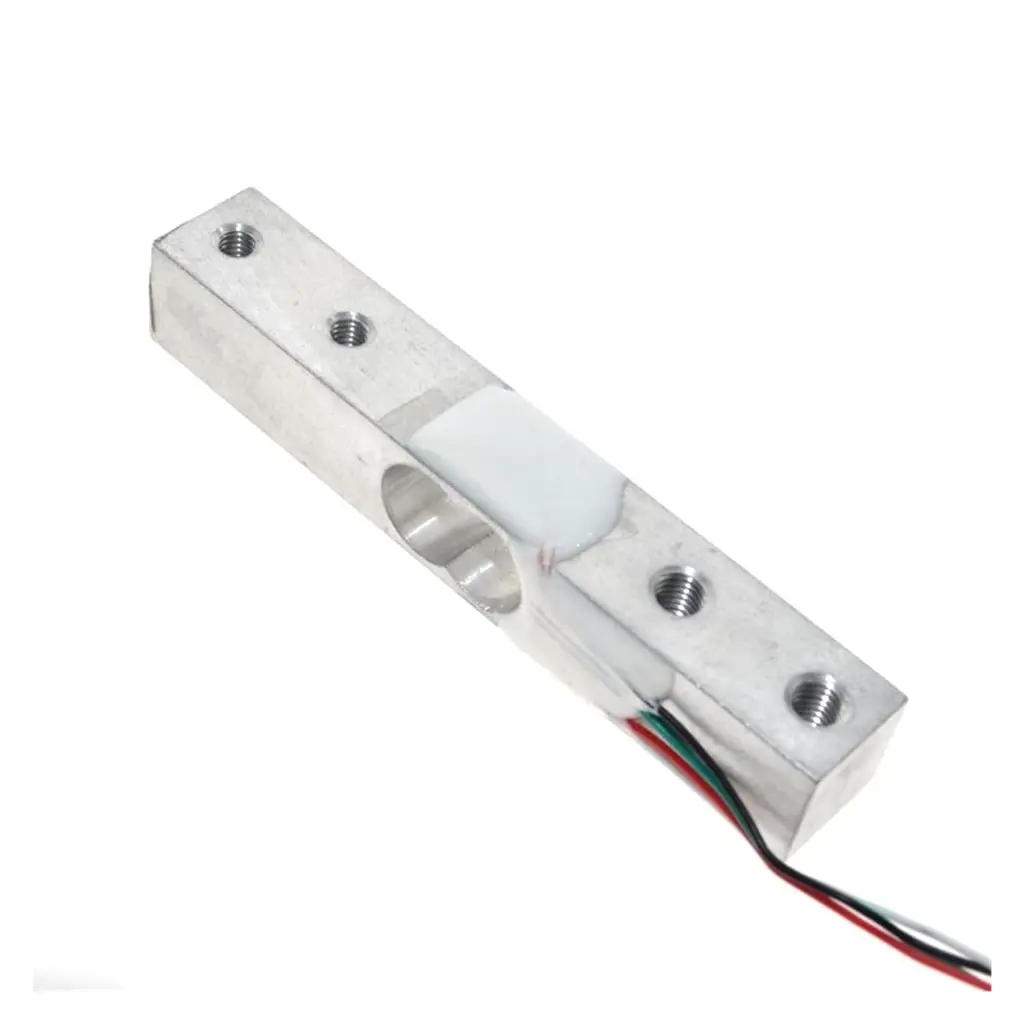

20 kg digital load cell weight sensor

The load cell measures a maximum force of 20 kg (44 lb)

Rated output sensitivity: 1.0 ± 0.1 mV/V

Zero output: ± 0.1 mV/V

Non‑linearity: 0.05% F.S

Hysteresis (lag): 0.05% F.S

Repeatability: 0.05% F.S

Creep (5 min): 0.05% F.S / 3 min

Output impedance: 1000 ± 50 Ω

Temperature effect on sensitivity: 0.05% F.S/°C

Temperature effect on zero: 0.05% F.S/°C

Accuracy: 2 g

Size: 80 × 12.7 × 12.7 mm / 3.15 × 0.5 × 0.5 inches

Connection: Red → E+ / Black → E- / Green → A+ / White → A-
