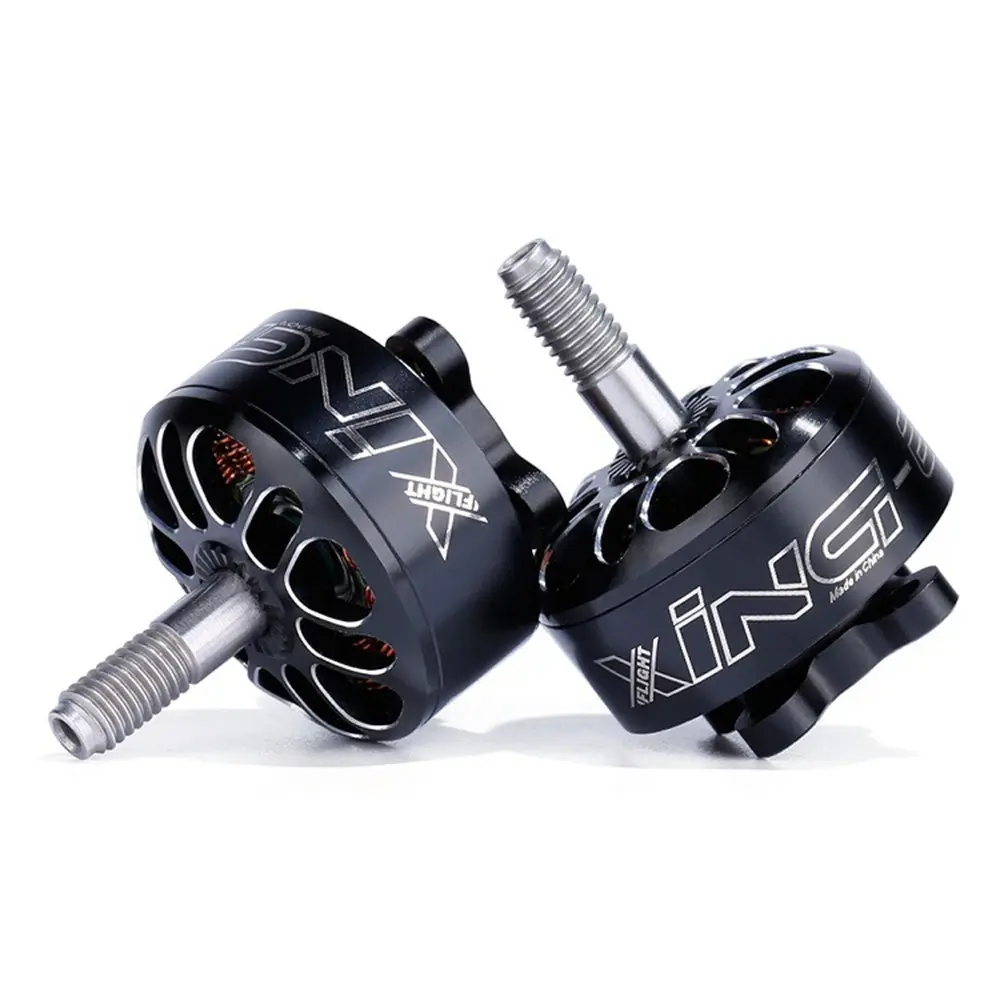

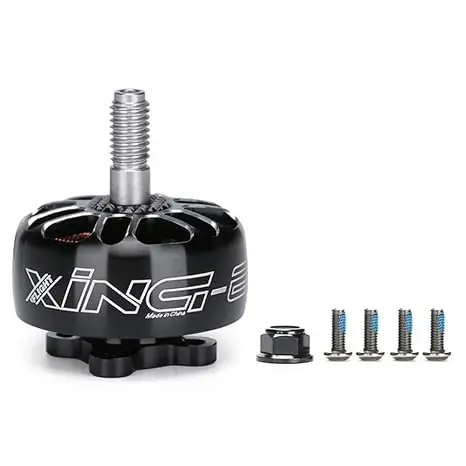

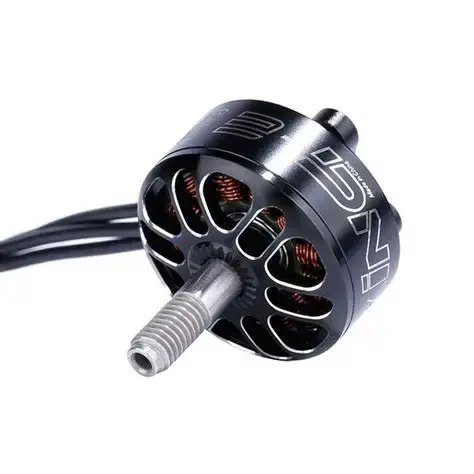

2207- 1800KV Brushless Motor iFlight Xing, 2-6S
KV: 1700
Configuration: 12N14P
Stator Diameter: 24mm
Magnets: N52SH Curved
Bearing Size: 9x4x4
Shaft Diameter: 4mm / Steel
Base Mounting Pattern: 16x16mm M3 Thread
Motor Dimension: 28.5x19.7mm
Weight: 33.8g (150mm wires)
Idle Current @12.6v (Io): 1.2 A
Cells (LiPo): 2-6S
Max Burst Current <10s: 35.22A
Max Power (W) 60s: 845W
Internal Resistance (Rm): 81.5mΩ
Motor Wire Length: 150mm/20AWG
