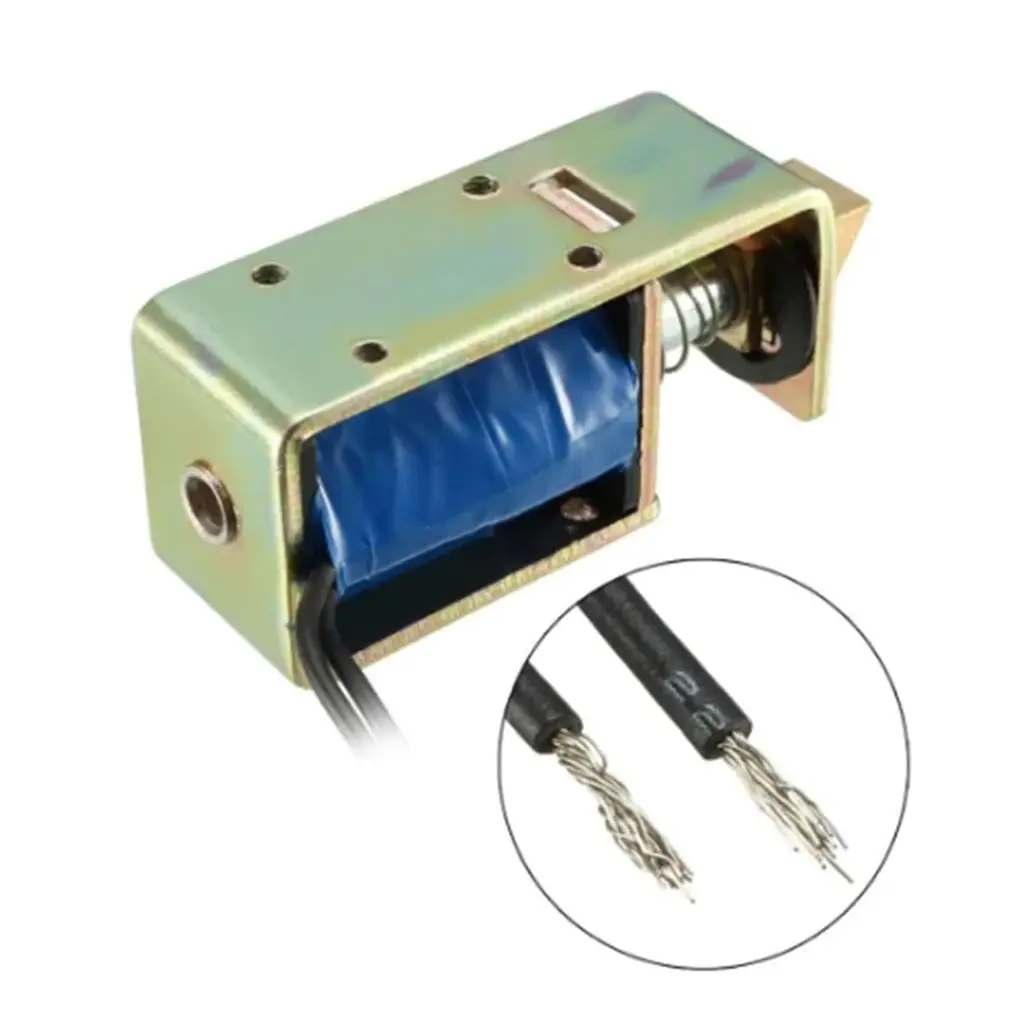

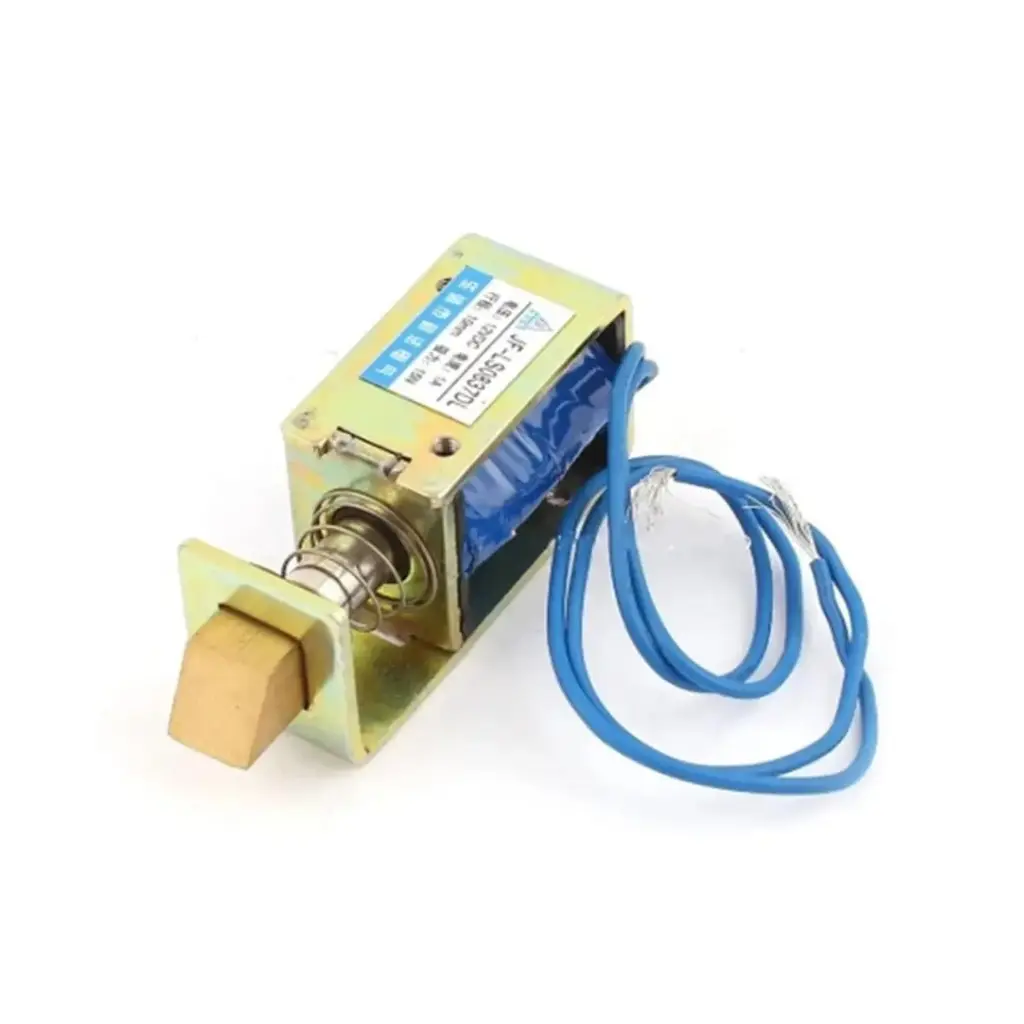

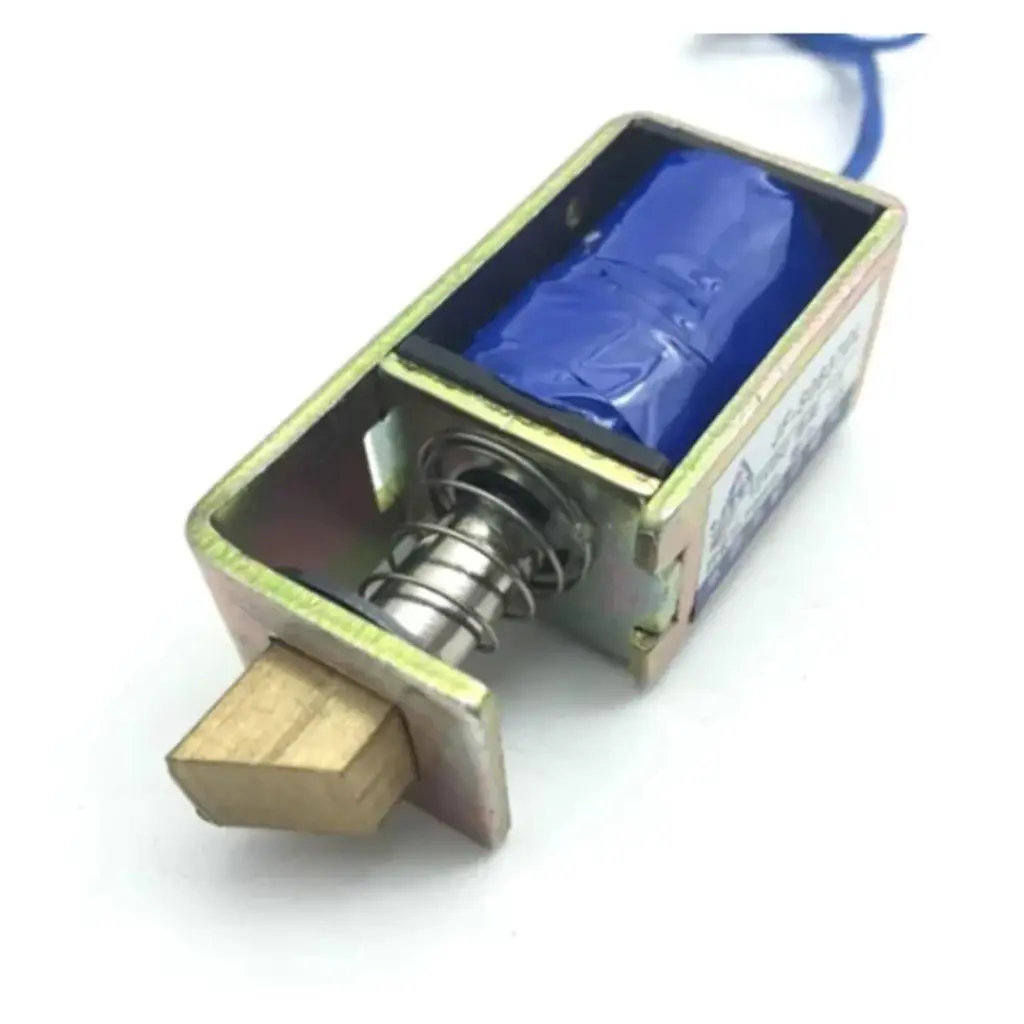

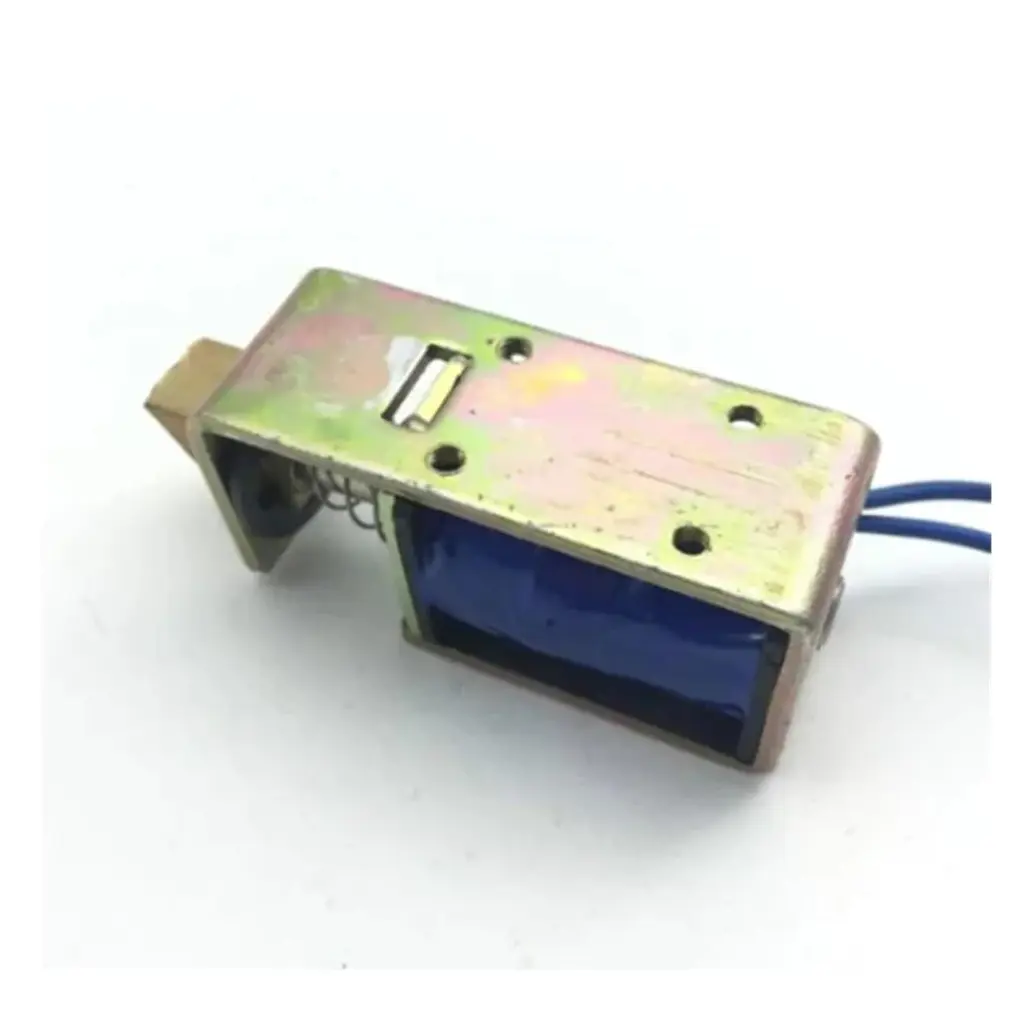

JF-S0837DL 10mm Stroke 1.5Kg 15N Force Pull Type Open Frame Actuator Solenoid Electromagnet DC 6V 12V 24V 1A Door Lock Assembly(12V)

Specification:

Material: Hard magnetic material

Current characteristics: DC

Current :1A

Voltage: 6V 12V 24V 36V DC

Initial suction: 15 (N)

Working voltage: 6V,12V,24V,36V

Rated travel: 10 (mm)

Length:60mm

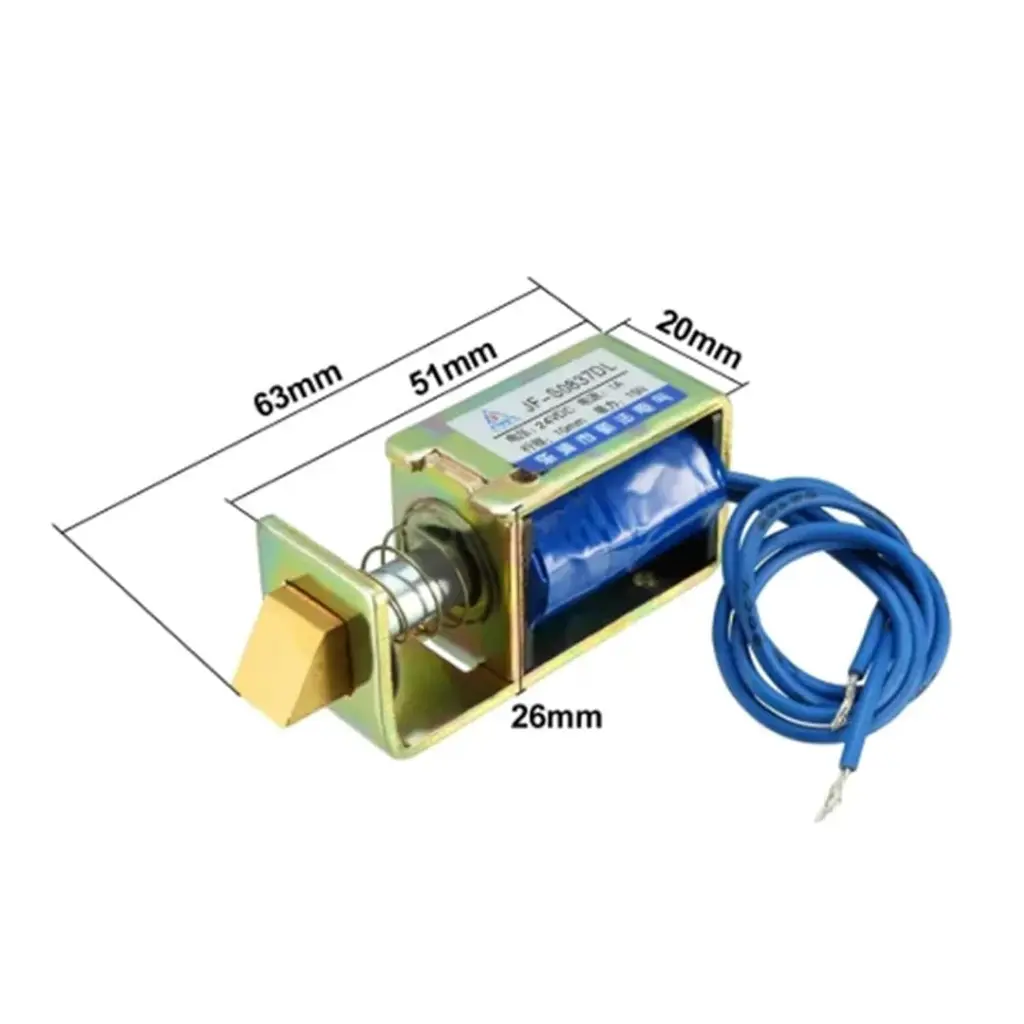

Size:20*26*60(mm)
