About this item

• Second Generation Raspberry Pi Camera Module with Fixed Focus Lens
• Sony Exmor IMX219 Sensor Capable of 4K30 1080P60 720P180 8MP Still
• 3280 (H) x 2464 (V) Active Pixel Count
• Maximum of 1080P30 and 8MP Stills in Raspberry Pi Board
• 2A Power Supply Highly Recommended

Product description

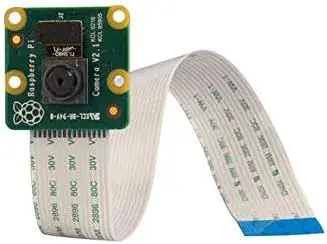

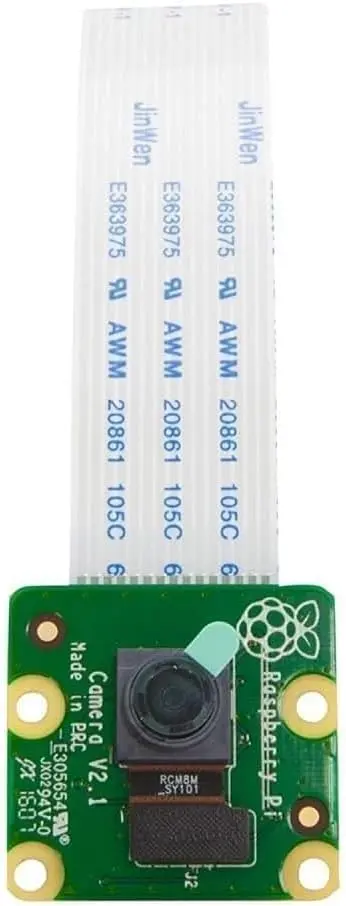

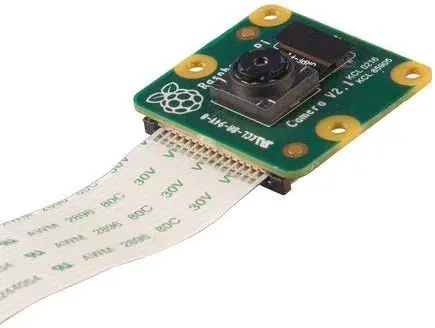

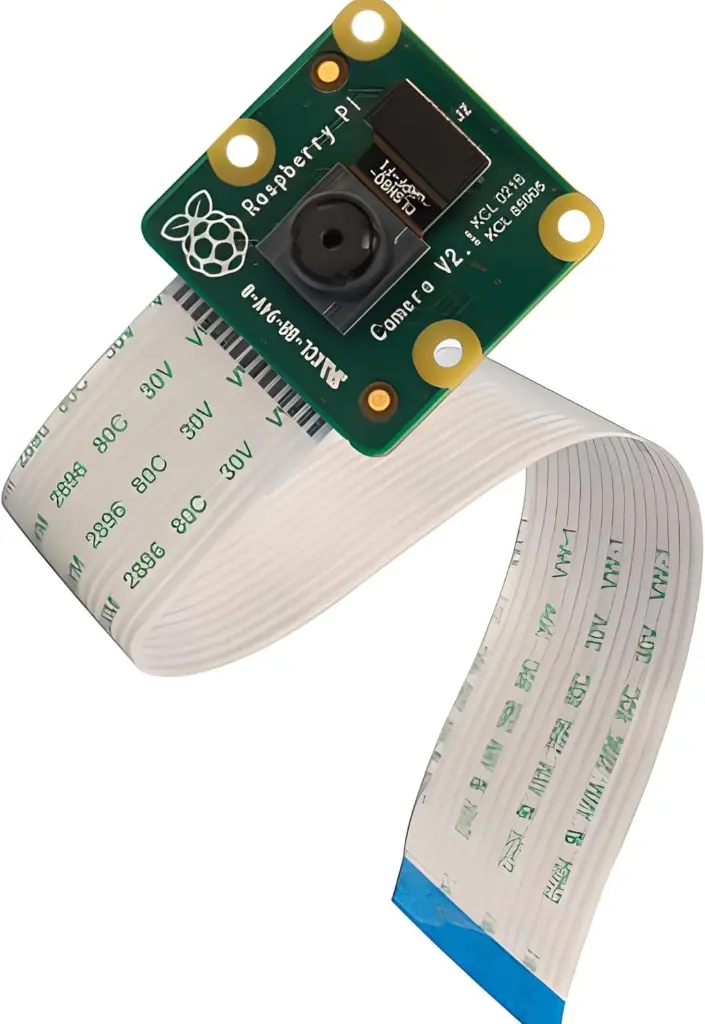

The Raspberry Pi Camera Module v2

The Raspberry Pi Camera Module v2 is a high quality 8 megapixel Sony IMX219 image sensor custom designed add-on board for Raspberry Pi, featuring a fixed focus lens. It's capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video.

It attaches to Pi by way of one of the small sockets on the board upper surface and uses the dedicated CSi interface, designed especially for interfacing to cameras. The board itself is tiny, at around 25mm x 23mm x 9mm. It also weighs just over 3g, making it perfect for mobile or other applications where size and weight are important.The high quality Sony IMX219 image sensor itself has a native resolution of 8 megapixel, and has a fixed focus lens on-board.

In terms of still images, the camera is capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60 and 640x480p90 video.

Features

8 megapixel camera capable of taking photographs of 3280 x 2464 pixels

Capture video at 1080p30, 720p60 and 640x480p90 resolutions

All software is supported within the latest version of Raspbian Operating System

Applications: CCTV security camera, motion detection, time lapse photography

The Raspberry Pi NoIR Camera Module v2

The Raspberry Pi NoIR Camera Module v2 is a high quality 8 megapixel Sony IMX219 image sensor custom designed add-on board for Raspberry Pi, featuring a fixed focus lens. It's capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video. It attaches to Pi by way of one of the small sockets on the board upper surface and uses the dedicated CSi interface, designed especially for interfacing to cameras.

The board itself is tiny, at around 25mm x 23mm x 9mm. It also weighs just over 3g, making it perfect for mobile or other applications where size and weight are important. The high quality Sony sensor itself has a native resolution of 8 megapixel, and has a fixed focus lens on-board. In terms of still images, the camera is capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60 and 640x480p90 video. The NoIR Camera has No InfraRed (NoIR) filter on the lens

Features

8 megapixel camera capable of taking infrared photographs of 3280 x 2464 pixels

Capture video at 1080p30, 720p60 and 640x480p90 resolutions

All software is supported within the latest version of Raspbian Operating System

Applications: Infrared photography, low light photography, monitoring plant growth, CCTV security camera
